Caliper Guides & Seals Repair Kit
Stock No
50-1252
Brand / Models
  • Kaliper KNORR-BREMSE
Weight
1.600 kg.

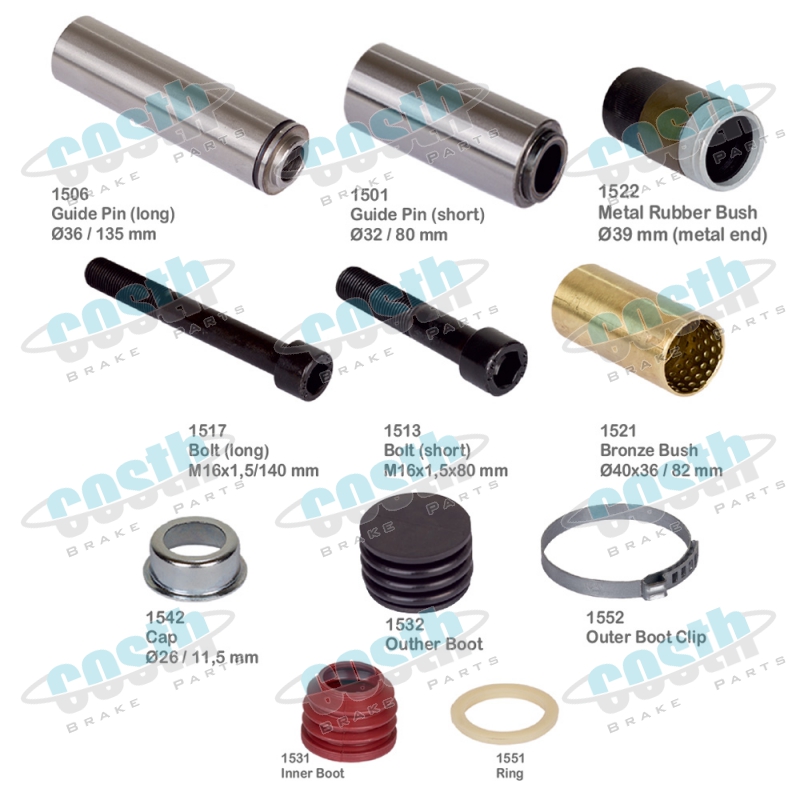

Product Components
Stock No Product Name Pieces Measures Weight

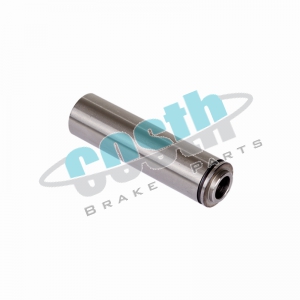

1506 1506 Caliper Guide Pin Ø36 / 135 mm 1 Ø36 / 135 mm 0.000 kg.
1501 1501 Caliper Guide Pin Ø32 / 80 mm 1 Ø32 / 80 mm 0.300 kg.

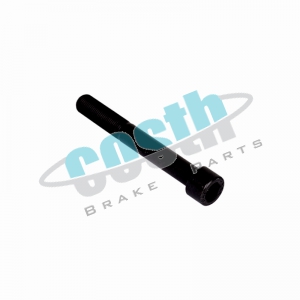

1517 1517 Bolt (Long) M16X1,5X140 mm 1 M16X1,5X140 mm 0.250 kg.
1513 1513 Bolt (Short) M16x1,5x80 mm 1 M16x1,5x80 mm 0.160 kg.
1522 1522 Rubber Bush (Long Ø39 mm) 1 Ø39 (metal end) 0.090 kg.
1521 1521 Caliper Pin Bush Ø40x36 / 82 mm 1 Ø40x36 / 82 mm 0.160 kg.
1532 1532 Caliper Pin Cap 1 0.025 kg.
1552 1552 Caliper Pin Boot Clamp 1 0.010 kg.
1542 1542 Steel Cap Ø26 / 11,5 mm 1 Ø26 / 11,5 mm 0.010 kg.
1531 1531 Caliper Pin Boot 1 0.020 kg.
1551 1551 Caliper Pin Boot Ring 1 0.005 kg.
