Caliper Guides & Seals Repair Kit
- Stock No
- 50-1320
- Brand / Models
-
- Kaliper KNORR-BREMSE
- OEM No
- Weight
- 1.520 kg.
| Brand | OEM No |
|---|---|
| KNR | K004100 - K004168 - K010766 |
| MB | 000 420 5082 |
| SCN | 1748131 - 2121647 - 2198395 |
| SF | 3 434 3815 00 |
| SCHMTZ | 1008450 |
| BNDX | 803114 |
| HNDRCKSN | S-29152-9 -MODEL ADB22X |
| OTHER | CKSK.6.2 |

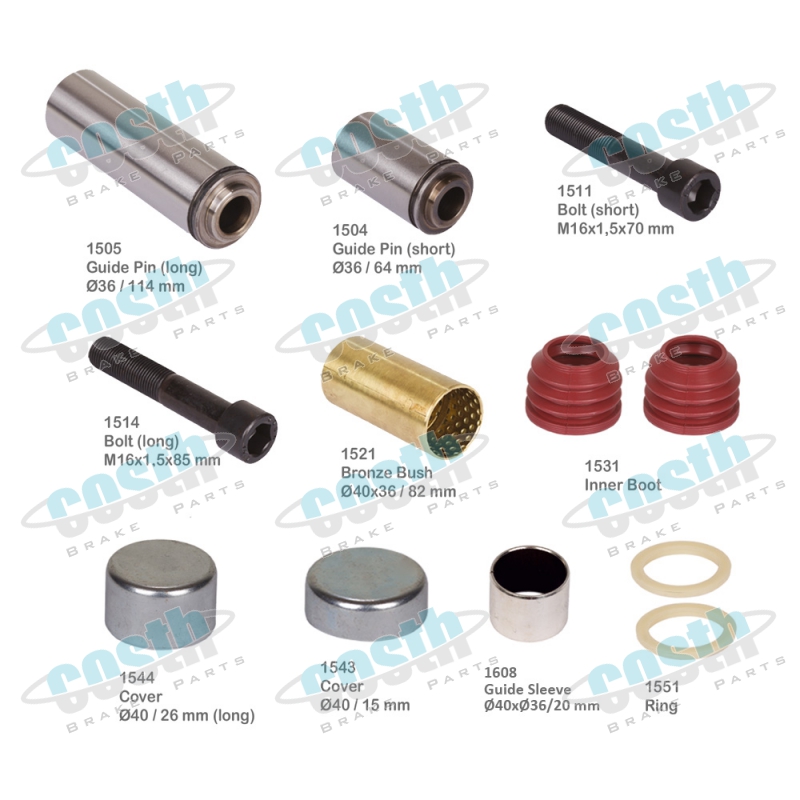

Product Components
| Stock No | Product Name | Pieces | Measures | Weight | |
|---|---|---|---|---|---|
|
1505 | Caliper Guide Pin Ø36 / 114 mm | 1 | Ø36 / 114 mm | 0.570 kg. |
|
1504 | Caliper Guide Pin Ø36 / 64 mm | 1 | Ø36 / 64 mm | 0.340 kg. |
|
1511 | Bolt (Short) M16x1,5/70 mm | 1 | M16x1,5/70 mm | 0.140 kg. |
|
1514 | Bolt (Short) M16x1,5x85 mm | 1 | M16x1,5x85 mm | 0.170 kg. |
|
1521 | Caliper Pin Bush Ø40x36 / 82 mm | 1 | Ø40x36 / 82 mm | 0.160 kg. |
|
1608 | Caliper Pin Bush Ø36 x 40 / 20 mm | 1 | Ø36 x 40 / 20 mm | 0.000 kg. |
|
1543 | Steel Cap Ø40 / 15 mm | 1 | Ø40 / 15 mm | 0.020 kg. |
|
1544 | Steel Cap Ø40/26 mm (long) | 1 | Ø40/26 mm (long) | 0.040 kg. |
|
1531 | Caliper Pin Boot | 2 | 0.020 kg. | |
|
1551 | Caliper Pin Boot Ring | 2 | 0.005 kg. |
