Caliper Guides & Seals Repair Kit
- Stock No
- 50-1408
- Brand / Models
-
- Kaliper KNORR-BREMSE
- Weight
- 2.090 kg.
Product Components
| Stock No | Product Name | Pieces | Measures | Weight | |
|---|---|---|---|---|---|
|

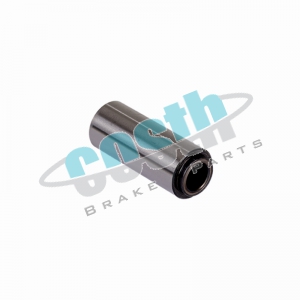

1501 | Caliper Guide Pin Ø32 / 80 mm | 1 | Ø32 / 80 mm | 0.300 kg. |
|
1502 | Caliper Guide Pin Ø34 / 80 mm | 1 | Ø34 / 80 mm | 0.380 kg. |
|

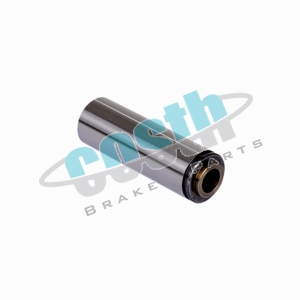

1505 | Caliper Guide Pin Ø36 / 114 mm | 1 | Ø36 / 114 mm | 0.570 kg. |
|
1513 | Bolt (Short) M16x1,5x80 mm | 1 | M16x1,5x80 mm | 0.160 kg. |
|

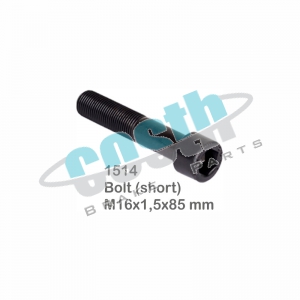

1514 | Bolt (Short) M16x1,5x85 mm | 2 | M16x1,5x85 mm | 0.170 kg. |
|

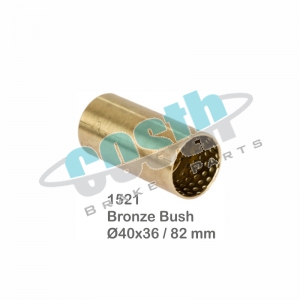

1521 | Caliper Pin Bush Ø40x36 / 82 mm | 1 | Ø40x36 / 82 mm | 0.160 kg. |
|
1531 | Caliper Pin Boot | 1 | 0.020 kg. | |
|
1551 | Caliper Pin Boot Ring | 1 | 0.005 kg. | |
|

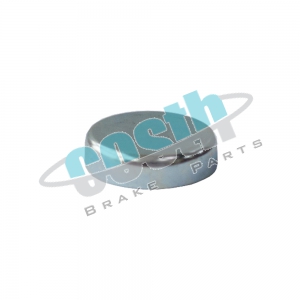

1564 | Steel Cap Ø40x11 mm | 1 | Ø40x11 mm | 0.020 kg. |
|

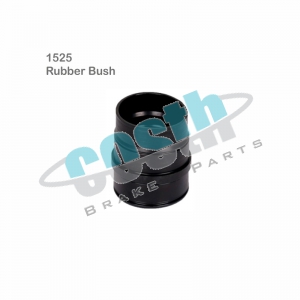

1525 | Rubber Bush Ø34 x40/50mm | 1 | Ø34 x40/50mm | 0.020 kg. |
|

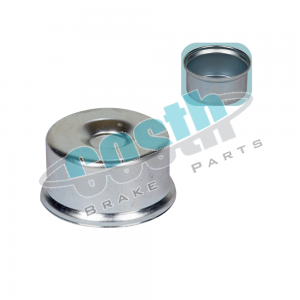

1541 | Steel Cap Ø50 / 28 mm | 1 | Ø50 / 28 mm | 0.040 kg. |
|

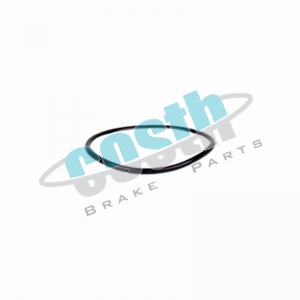

1553 | O-Ring | 1 | 0.001 kg. | |
|

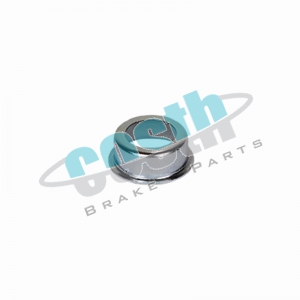

1542 | Steel Cap Ø26 / 11,5 mm | 1 | Ø26 / 11,5 mm | 0.010 kg. |
|

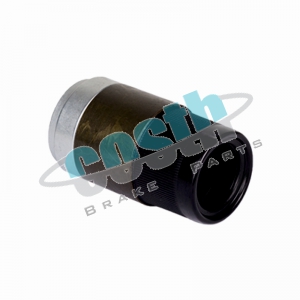

1524 | Rubber Bush (Long Ø35 mm) | 1 | Ø35 mm (metal end) | 0.080 kg. |
|

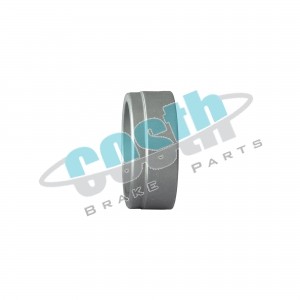

1604 | Metal Bush Ø39 mm | 1 | Ø39 mm | 0.030 kg. |
Products Used
Caliper Repair Kit
- Stock No CST 1047
- Model KNORR:SETLER
