Caliper Guides & Seals Repair Kit
- Stock No
- 50-1410
- Brand / Models
-
- Kaliper KNORR-BREMSE
- Weight
- 1.590 kg.
Product Components
| Stock No | Product Name | Pieces | Measures | Weight | |
|---|---|---|---|---|---|
|
1505 | Caliper Guide Pin Ø36 / 114 mm | 1 | Ø36 / 114 mm | 0.570 kg. |
|
1504 | Caliper Guide Pin Ø36 / 64 mm | 1 | Ø36 / 64 mm | 0.340 kg. |
|
1511 | Bolt (Short) M16x1,5/70 mm | 1 | M16x1,5/70 mm | 0.140 kg. |
|
1514 | Bolt (Short) M16x1,5x85 mm | 1 | M16x1,5x85 mm | 0.170 kg. |
|
1521 | Caliper Pin Bush Ø40x36 / 82 mm | 1 | Ø40x36 / 82 mm | 0.160 kg. |
|

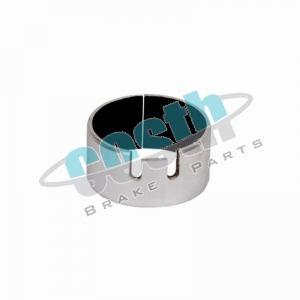

1527 | Caliper Pin Bush Ø40xØ36/20 mm | 1 | Ø40xØ36/20 mm | 0.040 kg. |
|
1543 | Steel Cap Ø40 / 15 mm | 1 | Ø40 / 15 mm | 0.020 kg. |
|
1544 | Steel Cap Ø40/26 mm (long) | 1 | Ø40/26 mm (long) | 0.040 kg. |
|
1531 | Caliper Pin Boot | 2 | 0.020 kg. | |
|
1551 | Caliper Pin Boot Ring | 2 | 0.005 kg. | |
|

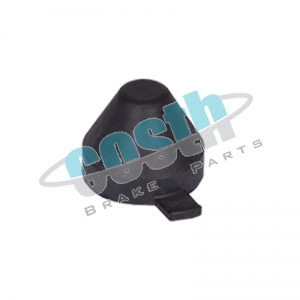

1561 | Adjuster Cap | 1 | 35 mm | 0.010 kg. |
