Caliper Guides, Seals & Piston Repair Kit
- Stock No
- 70-3201
- Brand / Models
-
- Teker & Fren Sistemleri WABCO
- OEM No
- Weight
- 2.600 kg.
| Brand | OEM No |
|---|---|
| DF | 1440505 |
| RNLT | 5001 858 722 |
| WBC | 12 999 746 |
Product Components
| Stock No | Product Name | Pieces | Measures | Weight | |
|---|---|---|---|---|---|
|
3504 | Caliper Guide Pin Ø38 / 118 mm | 1 | Ø38 / 118 mm | 0.780 kg. |
|
3503 | Caliper Guide Pin Ø38 / 76 mm | 1 | Ø38 / 76 mm | 0.480 kg. |
|
3514 | Bolt (Long) M16x1,5x120 mm | 1 | M16x1,5x120 mm | 0.220 kg. |
|
1513 | Bolt (Short) M16x1,5x80 mm | 1 | M16x1,5x80 mm | 0.160 kg. |
|
3543 | Steel Cap (Long) Ø42,5x29 mm | 1 | Ø42,5x29 mm | 0.050 kg. |
|
3534 | Caliper Pin Boot | 2 | 0.000 kg. | |
|
3542 | Steel Cap (Short) | 1 | Ø42,5x17 mm | 0.030 kg. |
|
3522 | Caliper Pin Bush Ø42x38 / 30 mm | 3 | Ø42x38 / 30 mm | 0.060 kg. |
|
3544 | Ring | 2 | Ø44,5x1,25 mm | 0.005 kg. |
|

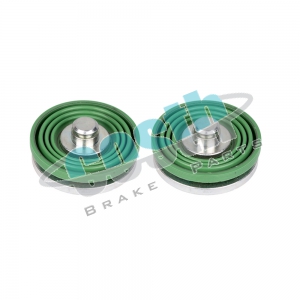

70-3203 | Tappet & Boot Assembly Kit | 1 | Ø69,50 mm | 0.640 kg. |
|
3551 | Caliper Plug | 2 | 0.005 kg. |
Products Used
Repair Kit
- Stock No CST 3007
- Model WABCO:SET SERİLER
